압력
압력
스마트 기체압력(B) K14A/Z14A
- Gas Pressure(B)
- Code: K14A/Z14A
- Output: Digital(I2C)
- Range: -650 ~ +650 hPa
LISTCONTACT US
Technical Data
| Measurement | Range | -650 to +650hPa |
| Resolution | 0.075hPa/16bit | |
| Sampling Rate | 1000Hz | |
| General | SMBL Interface | Smart Linker, Smart Sensor Box |
| Application | Science# | |
| Operating Environment | -40 ~ 60℃, Max 85%RH | |
| Sensing Method | Piezo Resistance strain gauge | |
| Connection | 5P Ø 2.5 Ear Phone Plug | |
| Electrical | Power | 3.3VDC |
| Communication | SM-BUS(I2C) | |
| Mechanics | Out Dimension | 68.7 * 17.4 * 15.2 |
| Housing | ABS |
* This resolution can be viewed through the Science# application.
** Battery life varies by use, configuration, temperature, and many other factors; actual results will vary.
● Accessory
- Plastic syringe 20ml
- Plastic barbed fitting
- Silicon tube

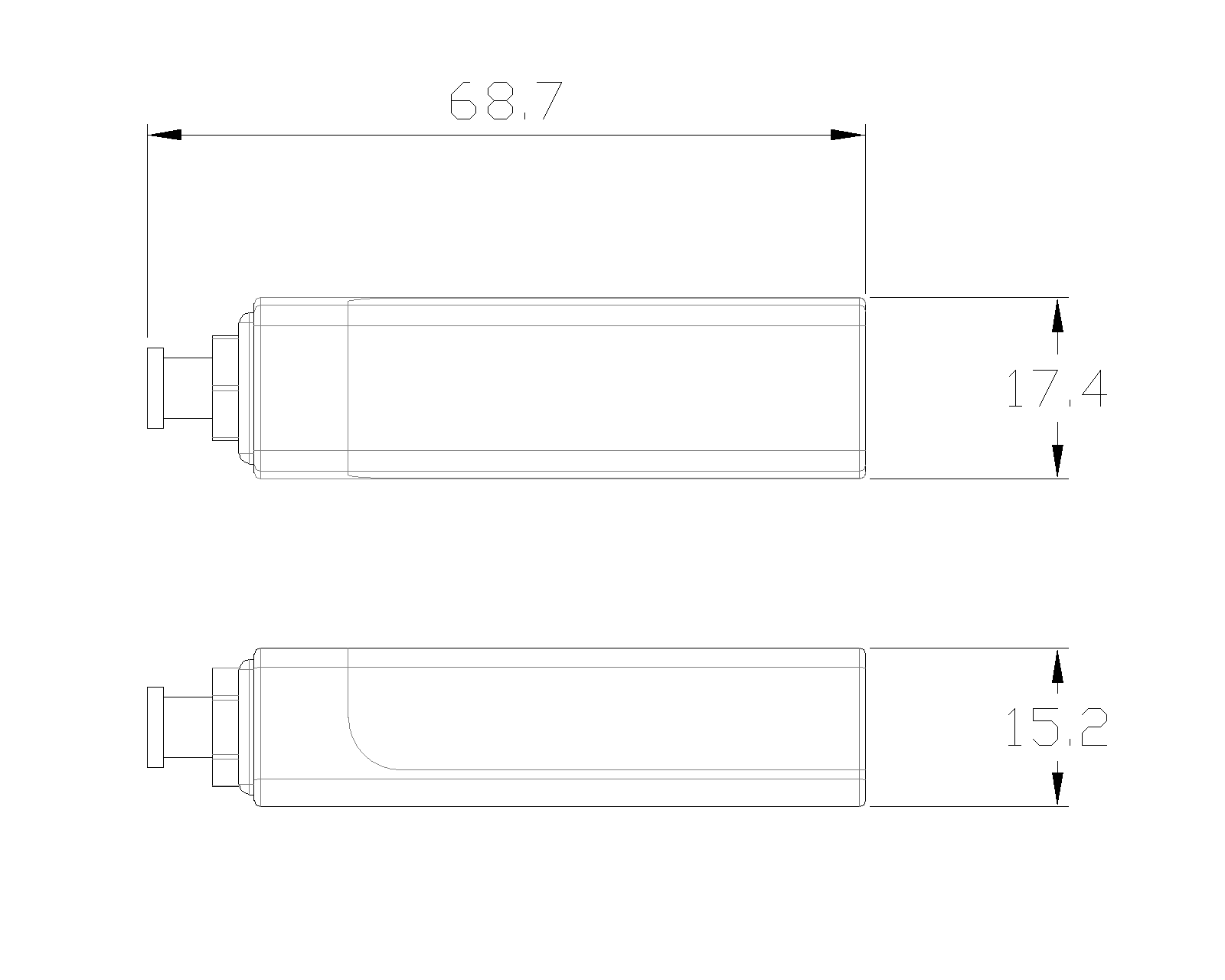

● Product Appearance
● Notice
- This product is to be used for educational purposes only. It is not appropriate for industrial, medical, research, or commercial applications.
- Our products and the contents are subject to change without any notice. In consequence we cannot assume responsibility for any consequential or other damage resulting from the use of this instrument
