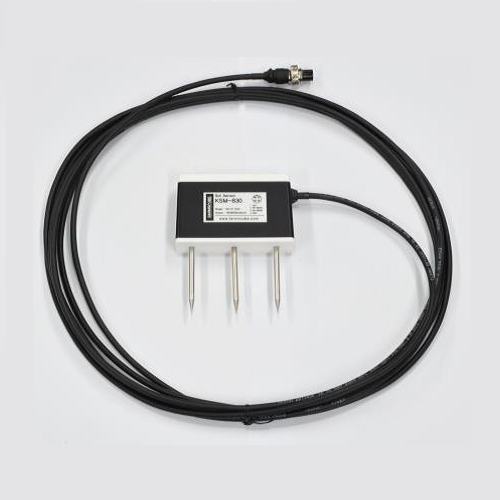

Soil Moisture Sensor KSM-830

  • Soil Moisture / EC / Temperature
  • Code: KSM-830
  • Output: RS-485 (ModBus)
  • Range: Soil 0 ~ 100 %VWC, EC 0 ~ 10 dS/m, Temp. 40 ~ 60 ℃
LISTCONTACT US

Benefit

The KSM-830 is an advanced soil sensor designed to measure moisture content in both natural soils and artificial growing media, such as coco peat.
Compared to conventional sensors, the KSM-830 minimizes the influence of external environmental factors, providing improved measurement accuracy across a wide range of moisture levels.

  • Easy installation
  • Simultaneous measurement of soil moisture, electrical conductivity (EC), and soil temperature
  • Water-resistant design equivalent to IP67
  • Automatic temperature compensation (β = 2%/°C)
  • Applications
    Fertigation Management
    Greenhouse Management

Technical Data

[table “” not found /]

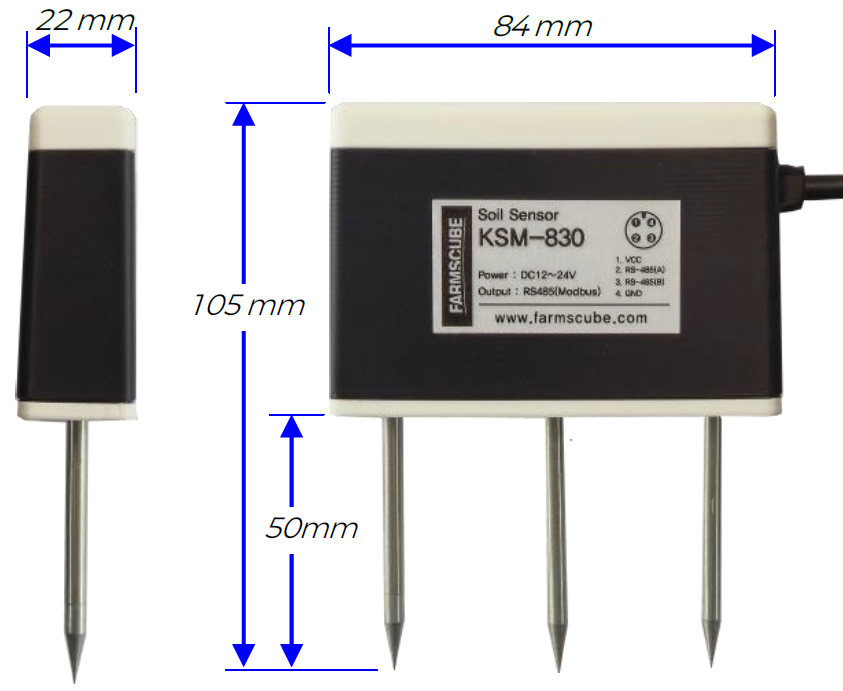

Dimensions

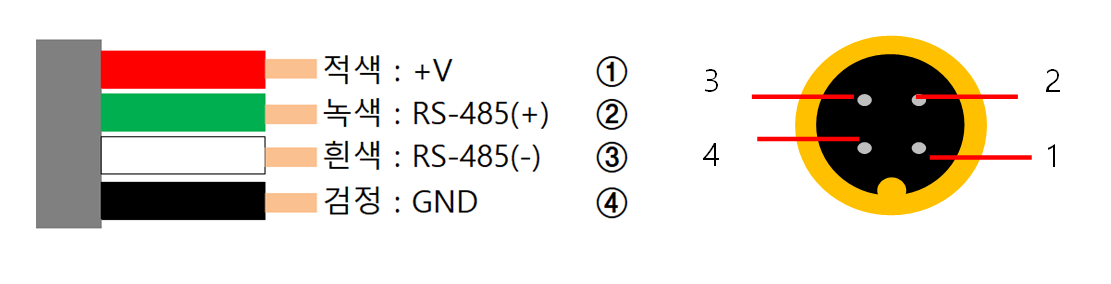

● Connection (SC-12-04A)

① RED : +V
② GREEN : RS-485(+)
③ WHITE : RS-485(-)
④ BLACK : GND

Download

Notices

  • Our products and the contents are subject to change without any notice. In consequence we cannot assume responsibility for any consequential or other damage resulting from the use of this instrument
