Temperature KDS-1001
- Stainless Steel Temperature Probe
- Code: KDS-1001
- Output: Analog Vout
- Range: -25 to +125
LISTCONTACT US
Technical Data
| Input Range | Range | -25℃ ~ +125℃ |
| Resolution | ± 0.1℃(typical) (@12bit AD) | |
| Accuracy | FS ±1.5℃ or (1% of reading) | |
| Response Time | 10s (90%) | |
| Max. Temp. without damage | 150℃ | |
| Sensing Method | 10 kΩ NTC Thermistor | |
| Outputs | Output signal | 0 ~ 5 V |
| Connection | 6P | |
| Sensor-ID | R = 100Ω | |
| General Conditions | Operating Power | 5VDC(@5%) |
| Power consumption | 8 mA | |
| Operating Environment | -25 ~ 60℃, Max 95%RH | |
| EMC | CE | |
| Warranty | 3 years | |
| Mechanics | Dimension | 36 x 143 x 19mm (WxLxH) Probe : 4(OD) x 170(L)mm |
| Housing Material | ABS + Stainless Steel(Probe) | |
| Housing Protection | IP30, IP67(Probe) |

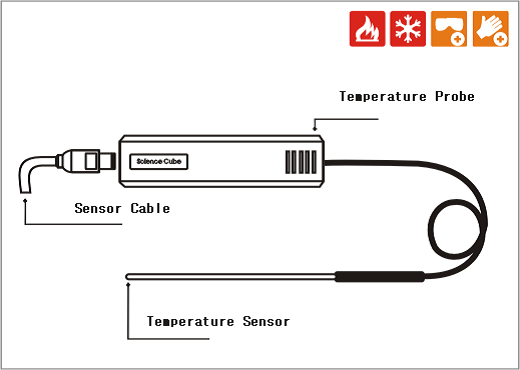

Product Appearance
● Typical Applications
- Measure the temperature of air or liquid
- Boiling points and freezing points of various substances.
- Experiments on chemical reactions, heat energy, and crystal observation
Notice
- This product is to be used for educational purposes only. It is not appropriate for industrial, medical, research, or commercial applications.
- Our products and the contents are subject to change without any notice. In consequence we cannot assume responsibility for any consequential or other damage resulting from the use of this instrument
