USB 습도 QUSB-1008
- Relative Humidity Sensor
- Code: QUSB-1008
- Output: Digital(USB 2.0)
- Range: 0 ~ 100 %RH
LISTCONTACT US
Technical Data
| Measurement | Input Range | 0 ~ 100%RH (Non-Condensing) |
| Resolution | 0.04%RH (@12bit AD) | |
| Accuracy | FS ±3.0%RH or (5% of reading) | |
| Response Time | 15seconds (90%) | |
| Sensing Method | Polymer Capacitive | |
| Outputs | Connection | USB 2.0 |
| General | Operating Power | 5VDC(@5%) |
| Power consumption | 17 mA | |
| Operating Environment | -40 ~ 60℃, 100%RH(Non-Condensed) | |
| EMC | CE | |
| Warranty | 3 years | |
| Mechanics | Dimension | 36 x 143 x 19mm (WxLxH) (USB cable not include) |
| Weight | 54 g | |
| Housing Material | ABS | |
| Housing Protection | IP30 |

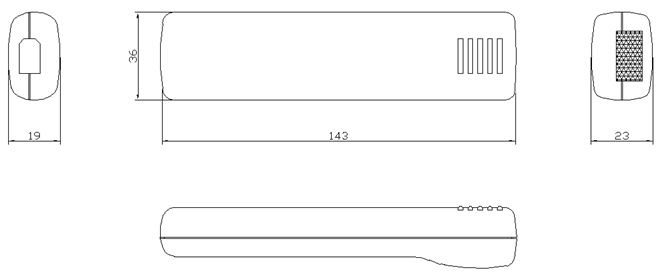

● Dimensions
* Our products and the contents are subject to change without any notice. In consequence we cannot assume responsibility for any consequential or other damage resulting from the use of this instrument
