열전쌍 온도센서 KDS-1002
- K-Thermocouple
- Code: KDS-1002
- Output: Analog Vout
- Range: -200 ~ +1,200 ℃
LISTCONTACT US
Technical Data
| Measurement | Range | -200℃ ~ +1,200℃ |
| Resolution | 0.6℃ (@12bit AD) | |
| Accuracy | FS ±7.0℃ or (0.5% of reading) | |
| Sensing Method | K-type Thermocouple | |
| Outputs | Output signal | 0 ~ 3 V |
| Calibration Equation | Temp(℃) = 500 * Vout(V) - 300 | |
| Connection | 6P | |
| Sensor-ID | R = 324 Ω | |
| General | Operating Power | 5VDC(@5%) |
| Power consumption | 24 mA | |
| Operating Environment | -40 ~ 60℃, Max 95%RH | |
| EMC | CE | |
| Warranty | 3 years | |
| Mechanics | Dimension | 36 x 143 x 19mm (WxLxH) Probe 1(OD) x 150(L)mm |
| Housing Material | ABS + Stainless Steel(Probe) | |
| Weight | 73 g | |
| Housing Material | ABS + Stainless Steel(Probe) | |
| Housing Protection | IP30, IP67(Probe) |

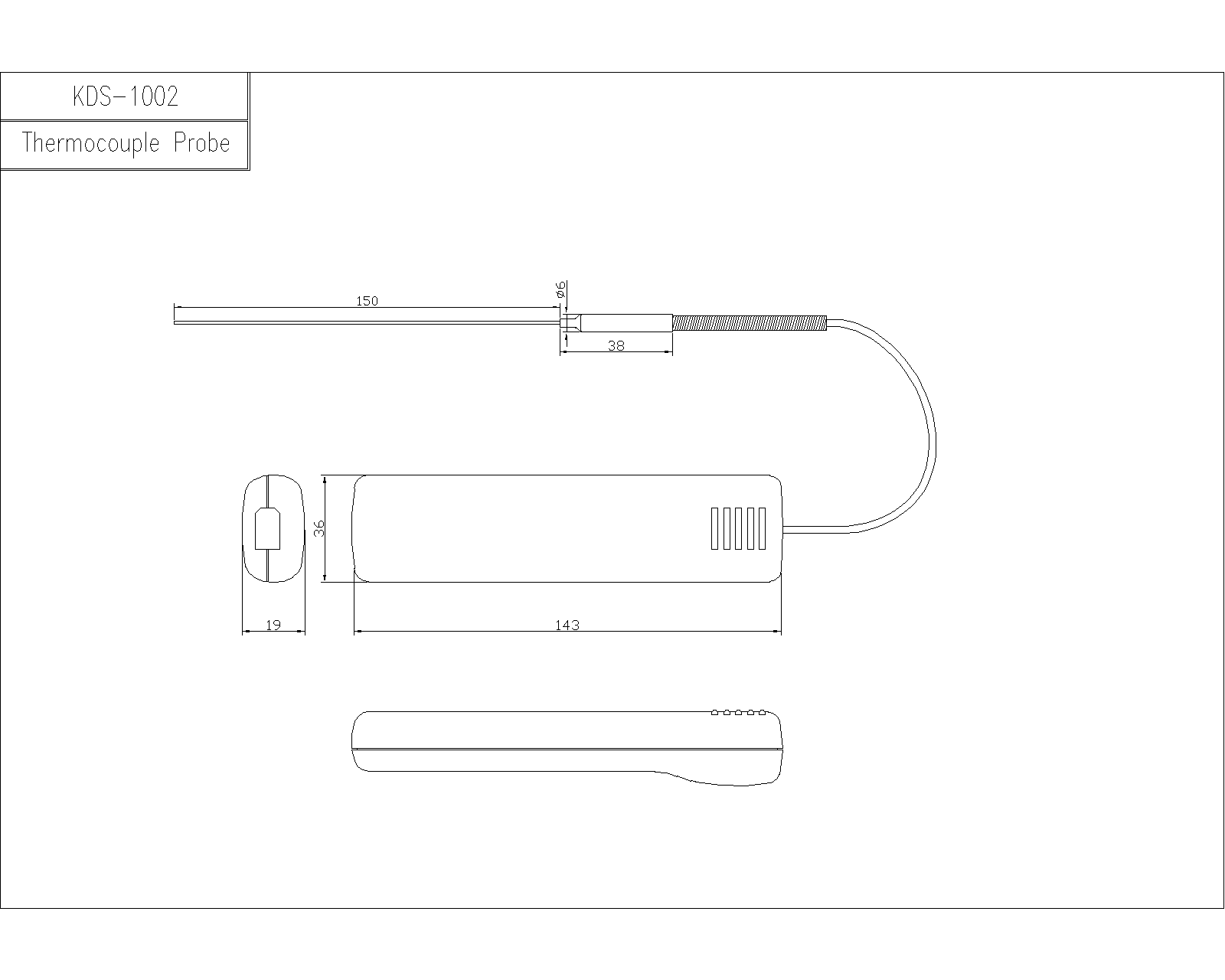

● Product Appearance
● Typical Applications
- 공기 또는 액체의 온도를 측정
- 여러 가지 물질의 끓는점과 어는점.
- 화학반응과 열에너지, 결정관찰 실험
● Notice
- This product is to be used for educational purposes only. It is not appropriate for industrial, medical, research, or commercial applications.
- Our products and the contents are subject to change without any notice. In consequence we cannot assume responsibility for any consequential or other damage resulting from the use of this instrument
