스마트 운동 K1FA/K1FB

  • Smart Motion
  • Code: K1FA/K1FB
  • Output: Digital(I2C)
  • Range: 0.15 ~ 6.0 m
목록문의하기

Technical Data

MeasurementRange0.15 ~ 6.0m
Resolution±0.001m
Effective beam angle15° at -6dB
Full width40°
Sampling RateK1FA 20Hz
K1FB 100Hz
GeneralSMBL InterfaceSmart Linker, Smart Sensor Box
ApplicationScience#
Operating Environment-40 ~ 60℃, Max 85%RH
Connection5P Ø 2.5 Ear Phone Plug
ElectricalPower3.3VDC
CommunicationSM-BUS(I2C)
Mechanics specifications
Dimension(WxLxH,mm)63 * 52 * 29
Housing MaterialsABS

* This resolution can be viewed through the Science# application.

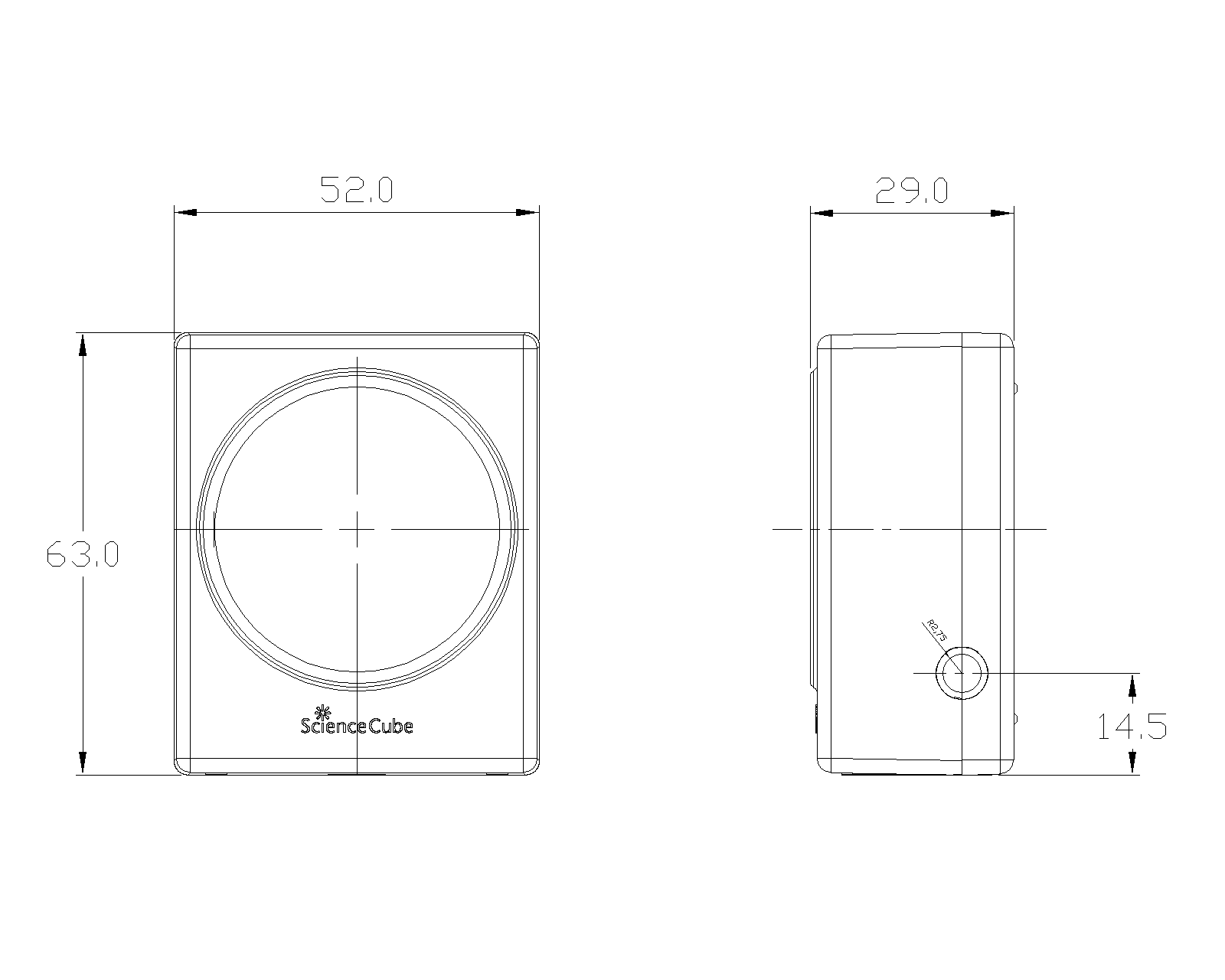

● Product Appearance Design

● Notice

  • This product is to be used for educational purposes only. It is not appropriate for industrial, medical, research, or commercial applications.
  • Our products and the contents are subject to change without any notice. In consequence we cannot assume responsibility for any consequential or other damage resulting from the use of this instrument
