온도 및 습도
Technical Data
| Input Range | Measurement | -40℃ to 125℃ |
| Resolution | ±0.0625℃ | |
| Uncertainty | Typical ±0.25℃ (in -40℃ to 125℃) Max ±1.0℃ |
|
| Output Time | Typical 30ms(9bit, 33Hz Sampling rate) 65ms(10bit, 15Hz Sampling rate) 250ms(12bit, 4Hz Sampling rate) |
|
| Sampling Rate | Power-up default sampling rate is 4Hz Max. 33samples/second |
|
| General Conditions | SMBL Interface | Smart Linker, Smart Sensor Box |
| Application | Science# | |
| Operating Environment | -40 ~ 60℃, Max 85%RH | |
| Connection | 5P- Ø 2.5 Phone Plug | |
| Electrical | Power | 3.3VDC |
| Communication | SM-BUS(I²C) | |
| Dimensions | Housing Length | 65mm |
| Housing Material | PVC Black | |
| Probe Length | C18A : 85mm C18B : 130mm C18C : 180mm |

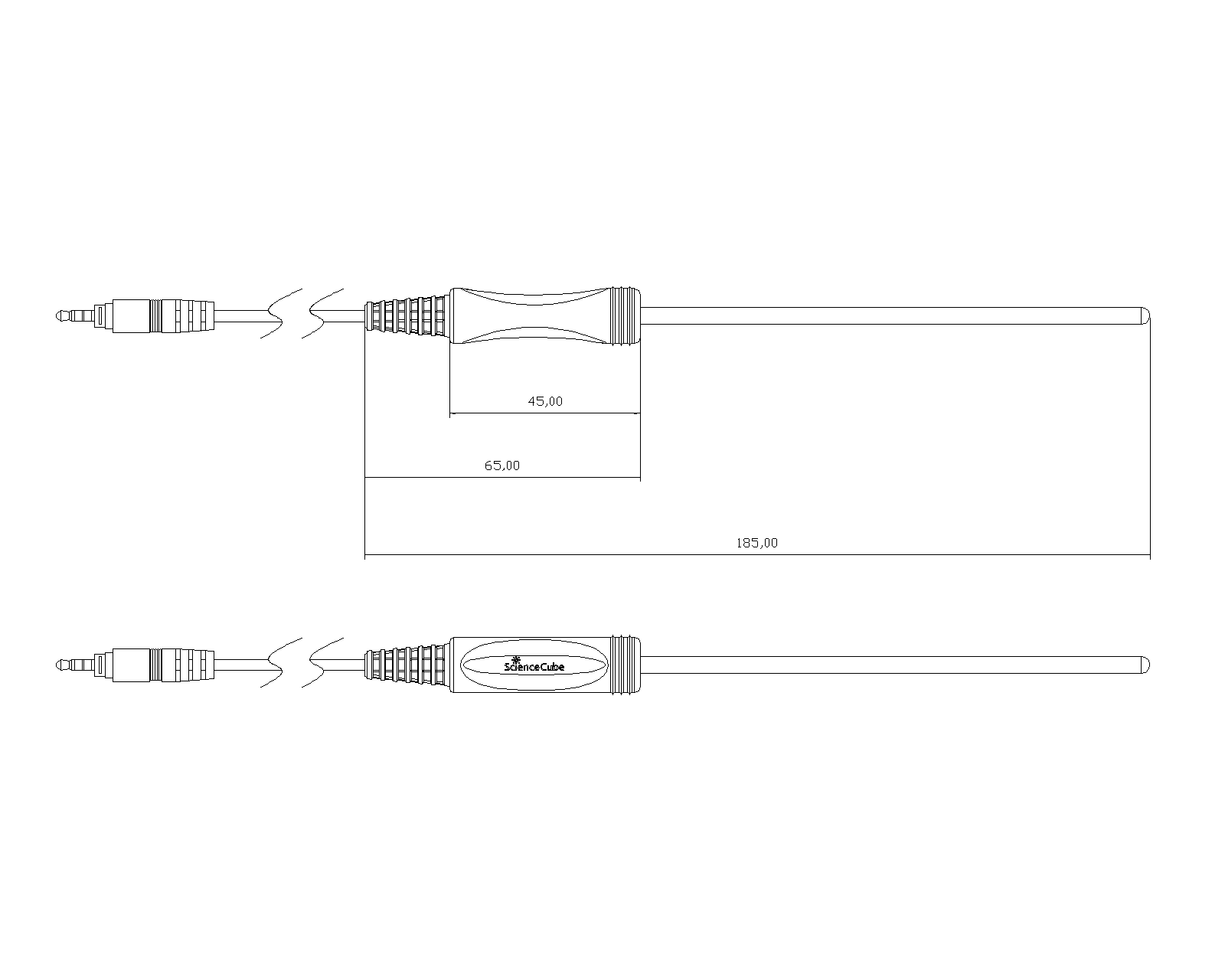

● Product Appearance
* Smart Linker는 제품에 포함되어 있지 않습니다.
● Notice
- This product is to be used for educational purposes only. It is not appropriate for industrial, medical, research, or commercial applications.
- Our products and the contents are subject to change without any notice. In consequence we cannot assume responsibility for any consequential or other damage resulting from the use of this instrument
